surfaceutils Module Reference

Functions/Subroutines
subroutine	getsurfacesize (sizeNode, sizeCell, famList, n, includeZipper)
subroutine	getsurfaceconnectivity (conn, cgnsBlockID, ncell, famList, nFamList, includeZipper)
subroutine	getsurfacefamily (elemFam, ncell, famList, nFamList, includeZipper)
subroutine	getsurfacepoints (points, npts, sps_in, famList, nFamList, includeZipper)
subroutine	mapvector (vec1, n1, famList1, nf1, vec2, n2, famList2, nf2, includeZipper, nDim)
subroutine	getwalllist (wallList, nWallList, nFamTotal)

Function/Subroutine Documentation

getsurfaceconnectivity()

subroutine surfaceutils::getsurfaceconnectivity	(	integer(kind=inttype), dimension(4 * ncell), intent(inout)	conn,
		integer(kind=inttype), dimension(ncell), intent(inout)	cgnsBlockID,
		integer(kind=inttype), intent(in)	ncell,
		integer(kind=inttype), dimension(nfamlist), intent(in)	famList,
		integer(kind=inttype), intent(in)	nFamList,
		logical, intent(in)	includeZipper
	)

Definition at line 101 of file surfaceUtils.F90.

References blockpointers::bcfaceid, surfacefamilies::bcfamgroups, sorting::faminlist(), constants::imin, constants::jmax, constants::kmin, blockpointers::nbkglobal, blockpointers::nbocos, constants::nfamexchange, oversetdata::oversetpresent, blockpointers::righthanded, utils::setpointers(), and oversetdata::zippermeshes.

Referenced by tecplotio::addabsslice(), tecplotio::addparaslice(), tecplotio::writeliftdistributions(), tecplotio::writeslicesfile(), and tecplotio::writetecplotsurfacefile().

Here is the call graph for this function:

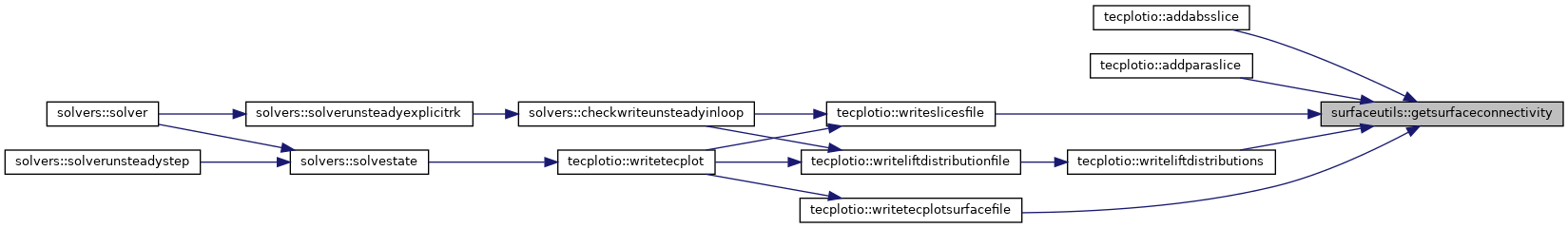

Here is the caller graph for this function:

getsurfacefamily()

subroutine surfaceutils::getsurfacefamily	(	integer(kind=inttype), dimension(ncell), intent(inout)	elemFam,
		integer(kind=inttype), intent(in)	ncell,
		integer(kind=inttype), dimension(nfamlist), intent(in)	famList,
		integer(kind=inttype), intent(in)	nFamList,
		logical, intent(in)	includeZipper
	)

Definition at line 278 of file surfaceUtils.F90.

References surfacefamilies::bcfamgroups, sorting::faminlist(), blockpointers::nbocos, constants::nfamexchange, oversetdata::oversetpresent, utils::setpointers(), and oversetdata::zippermeshes.

Referenced by tecplotio::addabsslice(), tecplotio::addparaslice(), tecplotio::writeliftdistributions(), tecplotio::writeslicesfile(), and tecplotio::writetecplotsurfacefile().

Here is the call graph for this function:

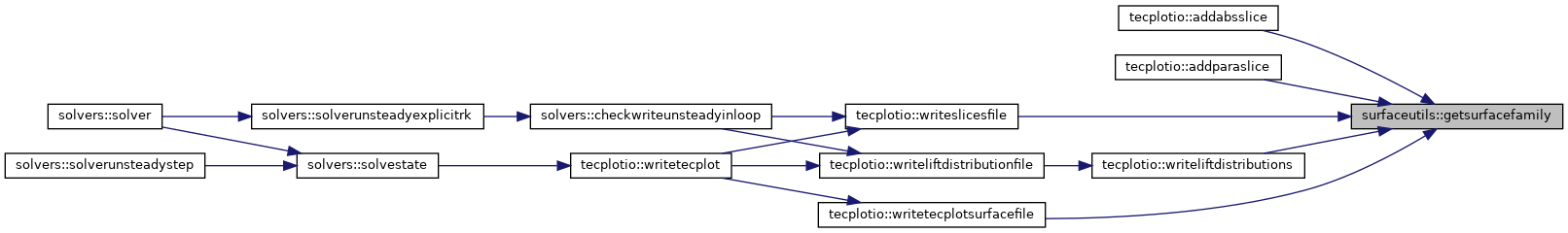

Here is the caller graph for this function:

getsurfacepoints()

subroutine surfaceutils::getsurfacepoints	(	real(kind=realtype), dimension(3, npts), intent(inout)	points,
		integer(kind=inttype), intent(in)	npts,
		integer(kind=inttype), intent(in)	sps_in,
		integer(kind=inttype), dimension(nfamlist), intent(in)	famList,
		integer(kind=inttype), intent(in)	nFamList,
		logical, intent(in)	includeZipper
	)

Definition at line 372 of file surfaceUtils.F90.

References blockpointers::bcfaceid, surfacefamilies::bcfamexchange, surfacefamilies::bcfamgroups, utils::echk(), sorting::faminlist(), blockpointers::il, constants::imax, constants::imin, blockpointers::jl, constants::jmax, constants::jmin, blockpointers::kl, constants::kmax, constants::kmin, communication::myid, blockpointers::nbocos, constants::nfamexchange, oversetdata::oversetpresent, utils::setbcpointers(), utils::setpointers(), blockpointers::x, bcpointers::xx, constants::zero, and oversetdata::zippermeshes.

Referenced by tecplotio::addabsslice(), tecplotio::addparaslice(), tecplotio::computesurfaceoutputnodaldata(), preprocessingapi::createnodescatterforfamilies(), tecplotio::writeliftdistributions(), and tecplotio::writeslicesfile().

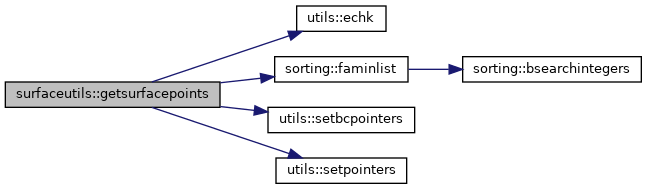

Here is the call graph for this function:

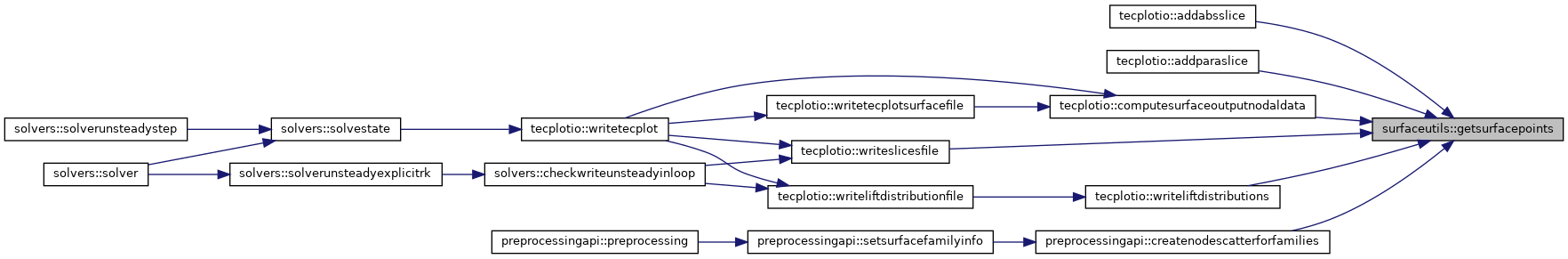

Here is the caller graph for this function:

getsurfacesize()

subroutine surfaceutils::getsurfacesize	(	integer(kind=inttype), intent(out)	sizeNode,
		integer(kind=inttype), intent(out)	sizeCell,
		integer(kind=inttype), dimension(n), intent(in)	famList,
		integer(kind=inttype), intent(in)	n,
		logical, intent(in)	includeZipper
	)

Definition at line 5 of file surfaceUtils.F90.

References surfacefamilies::bcfamgroups, sorting::faminlist(), blockpointers::nbocos, constants::nfamexchange, oversetdata::oversetpresent, utils::setpointers(), and oversetdata::zippermeshes.

Referenced by tecplotio::addabsslice(), tecplotio::addparaslice(), tecplotio::computesurfaceoutputnodaldata(), preprocessingapi::createnodescatterforfamilies(), adjointapi::drdwmatmult(), preprocessingapi::setsurfacefamilyinfo(), tecplotio::writeliftdistributions(), tecplotio::writeslicesfile(), tecplotio::writetecplot(), and tecplotio::writetecplotsurfacefile().

Here is the call graph for this function:

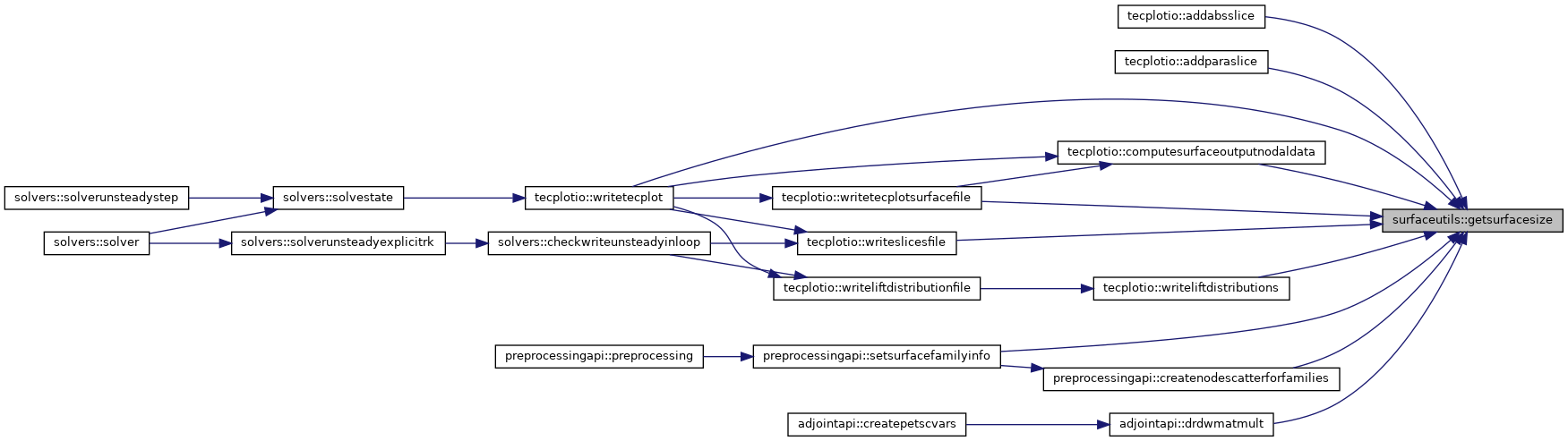

Here is the caller graph for this function:

getwalllist()

subroutine surfaceutils::getwalllist	(	integer(kind=inttype), dimension(nfamtotal), intent(out)	wallList,
		integer(kind=inttype), intent(out)	nWallList,
		integer(kind=inttype), intent(in)	nFamTotal
	)

Definition at line 647 of file surfaceUtils.F90.

References surfacefamilies::bcfamgroups, and constants::ibcgroupwalls.

mapvector()

subroutine surfaceutils::mapvector	(	real(kind=realtype), dimension(ndim, n1), intent(in)	vec1,
		integer(kind=inttype)	n1,
		integer(kind=inttype), dimension(nf1), intent(in)	famList1,
		integer(kind=inttype)	nf1,
		real(kind=realtype), dimension(ndim, n2), intent(inout)	vec2,
		integer(kind=inttype)	n2,
		integer(kind=inttype), dimension(nf2), intent(in)	famList2,
		integer(kind=inttype)	nf2,
		logical, intent(in)	includeZipper,
		integer(kind=inttype)	nDim
	)

Definition at line 528 of file surfaceUtils.F90.

References surfacefamilies::bcfamgroups, sorting::faminlist(), constants::nfamexchange, oversetdata::oversetpresent, and oversetdata::zippermeshes.

Here is the call graph for this function:
