usersurfaceintegrations Module Reference

Functions/Subroutines
subroutine	integrateusersurfaces (localValues, famList, sps)
subroutine	integrateusersurfaces_d (localValues, localValuesd, famList, sps)
subroutine	integrateusersurfaces_b (localValues, localValuesd, famList, sps)
subroutine	addintegrationsurface (pts, conn, famName, famID, isInflow, nPts, nConn)
subroutine	buildvolumeadts (oBlocks, useDual)
subroutine	performinterpolation (pts, oBlocks, useDual, comm)
subroutine	interpolateintegrationsurfaces
subroutine	commuserintegrationsurfacevars (recvBuffer, varStart, varEnd, comm)
subroutine	commuserintegrationsurfacevars_d (recvBuffer, recvBufferd, varStart, varEnd, comm)
subroutine	commuserintegrationsurfacevars_b (recvBuffer, recvBufferd, varStart, varEnd, comm)
subroutine	qsortinterppttype (arr, nn)

Function/Subroutine Documentation

addintegrationsurface()

subroutine usersurfaceintegrations::addintegrationsurface	(	real(kind=realtype), dimension(3, npts), intent(in)	pts,
		integer(kind=inttype), dimension(3, nconn), intent(in)	conn,
		character(len=*)	famName,
		integer(kind=inttype), intent(in)	famID,
		logical, intent(in)	isInflow,
		integer(kind=inttype), intent(in)	nPts,
		integer(kind=inttype), intent(in)	nConn
	)

Definition at line 456 of file userSurfaceIntegrations.F90.

References communication::myid, usersurfaceintegrationdata::nuserintsurfs, usersurfaceintegrationdata::nuserintsurfsmax, and usersurfaceintegrationdata::userintsurfs.

buildvolumeadts()

subroutine usersurfaceintegrations::buildvolumeadts	(	type(oversetblock), dimension(:), target	oBlocks,
		logical	useDual
	)

Definition at line 493 of file userSurfaceIntegrations.F90.

References blockpointers::bcfaceid, blockpointers::bctype, adtbuild::buildserialhex(), utils::echk(), constants::eighth, blockpointers::ib, blockpointers::iblank, blockpointers::ie, blockpointers::il, constants::imax, constants::imin, blockpointers::jb, blockpointers::je, blockpointers::jl, constants::jmax, constants::jmin, blockpointers::kb, blockpointers::ke, blockpointers::kl, constants::kmax, constants::kmin, constants::large, blockpointers::nbocos, constants::oversetouterbound, utils::setpointers(), blockpointers::vol, blockpointers::x, and constants::zero.

Referenced by interpolateintegrationsurfaces().

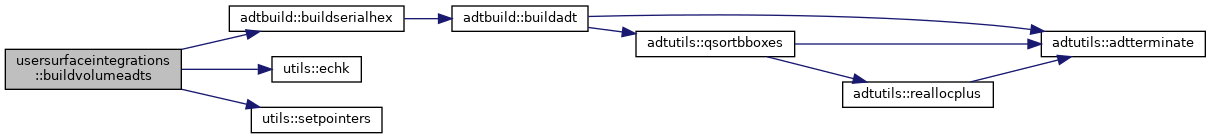

Here is the call graph for this function:

Here is the caller graph for this function:

commuserintegrationsurfacevars()

subroutine usersurfaceintegrations::commuserintegrationsurfacevars	(	real(kind=realtype), dimension(:)	recvBuffer,
		integer(kind=inttype), intent(in)	varStart,
		integer(kind=inttype), intent(in)	varEnd,
		type(usersurfcommtype)	comm
	)

Definition at line 1181 of file userSurfaceIntegrations.F90.

References communication::adflow_comm_world, utils::echk(), block::flowdoms, oversetutilities::fractoweights(), communication::myid, and block::ndom.

Referenced by integrateusersurfaces(), and integrateusersurfaces_b().

Here is the call graph for this function:

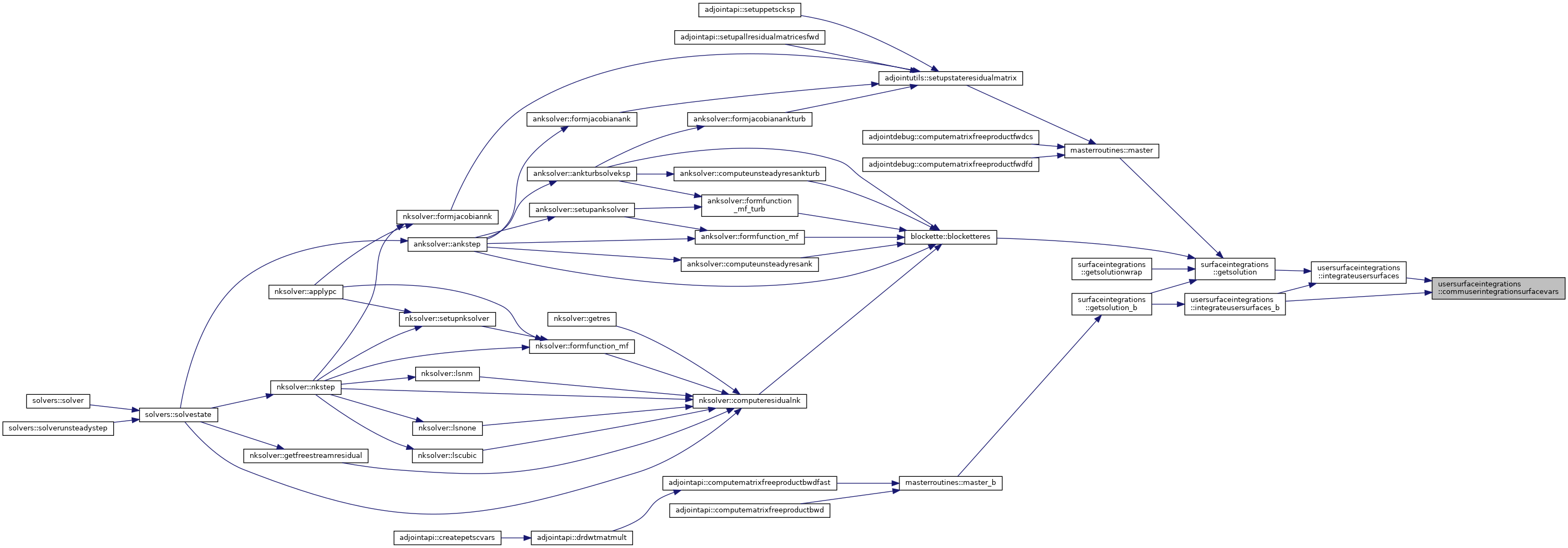

Here is the caller graph for this function:

commuserintegrationsurfacevars_b()

subroutine usersurfaceintegrations::commuserintegrationsurfacevars_b	(	real(kind=realtype), dimension(:)	recvBuffer,
		real(kind=realtype), dimension(:)	recvBufferd,
		integer(kind=inttype), intent(in)	varStart,
		integer(kind=inttype), intent(in)	varEnd,
		type(usersurfcommtype)	comm
	)

Definition at line 1331 of file userSurfaceIntegrations.F90.

References communication::adflow_comm_world, utils::echk(), block::flowdoms, oversetutilities::fractoweights(), communication::myid, block::ndom, and constants::nzippflowcomm.

Referenced by integrateusersurfaces_b().

Here is the call graph for this function:

Here is the caller graph for this function:

commuserintegrationsurfacevars_d()

subroutine usersurfaceintegrations::commuserintegrationsurfacevars_d	(	real(kind=realtype), dimension(:)	recvBuffer,
		real(kind=realtype), dimension(:)	recvBufferd,
		integer(kind=inttype), intent(in)	varStart,
		integer(kind=inttype), intent(in)	varEnd,
		type(usersurfcommtype)	comm
	)

Definition at line 1250 of file userSurfaceIntegrations.F90.

References communication::adflow_comm_world, utils::echk(), block::flowdoms, oversetutilities::fractoweights(), communication::myid, block::ndom, and constants::nzippflowcomm.

Referenced by integrateusersurfaces_d().

Here is the call graph for this function:

Here is the caller graph for this function:

integrateusersurfaces()

subroutine usersurfaceintegrations::integrateusersurfaces	(	real(kind=realtype), dimension(nlocalvalues), intent(inout)	localValues,
		integer(kind=inttype), dimension(:), intent(in)	famList,
		integer(kind=inttype), intent(in)	sps
	)

Definition at line 8 of file userSurfaceIntegrations.F90.

References communication::adflow_comm_world, commuserintegrationsurfacevars(), flowutils::computeptot(), flowutils::computettot(), utils::echk(), sorting::faminlist(), block::flowdoms, zipperintegrations::flowintegrationzipper(), constants::irho, constants::ivx, constants::ivy, constants::ivz, constants::izippflowgamma, constants::izippflowp, constants::izippflowsface, constants::izippflowx, constants::izippflowy, constants::izippflowz, flowvarrefstate::lref, communication::myid, utils::mynorm2(), block::ndom, usersurfaceintegrationdata::nuserintsurfs, constants::nzippflowcomm, flowvarrefstate::pref, flowvarrefstate::rhoref, utils::terminate(), flowvarrefstate::timeref, flowvarrefstate::tref, usersurfaceintegrationdata::userintsurfs, and constants::zero.

Referenced by surfaceintegrations::getsolution(), and integrateusersurfaces_b().

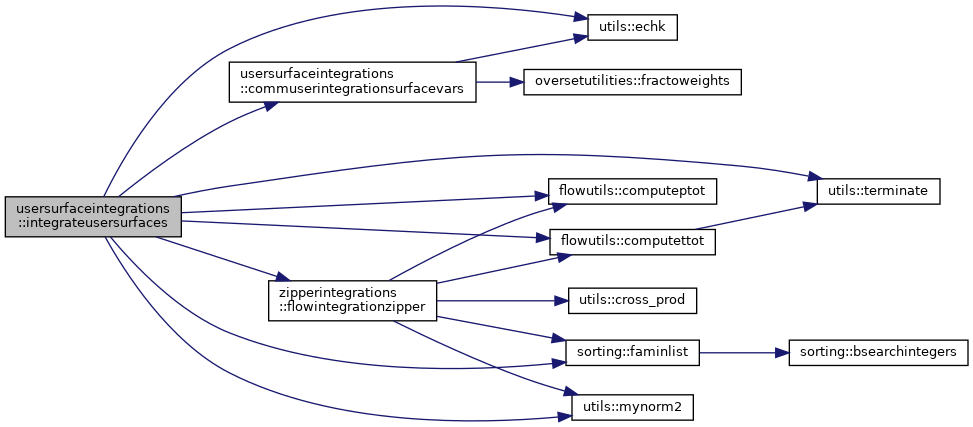

Here is the call graph for this function:

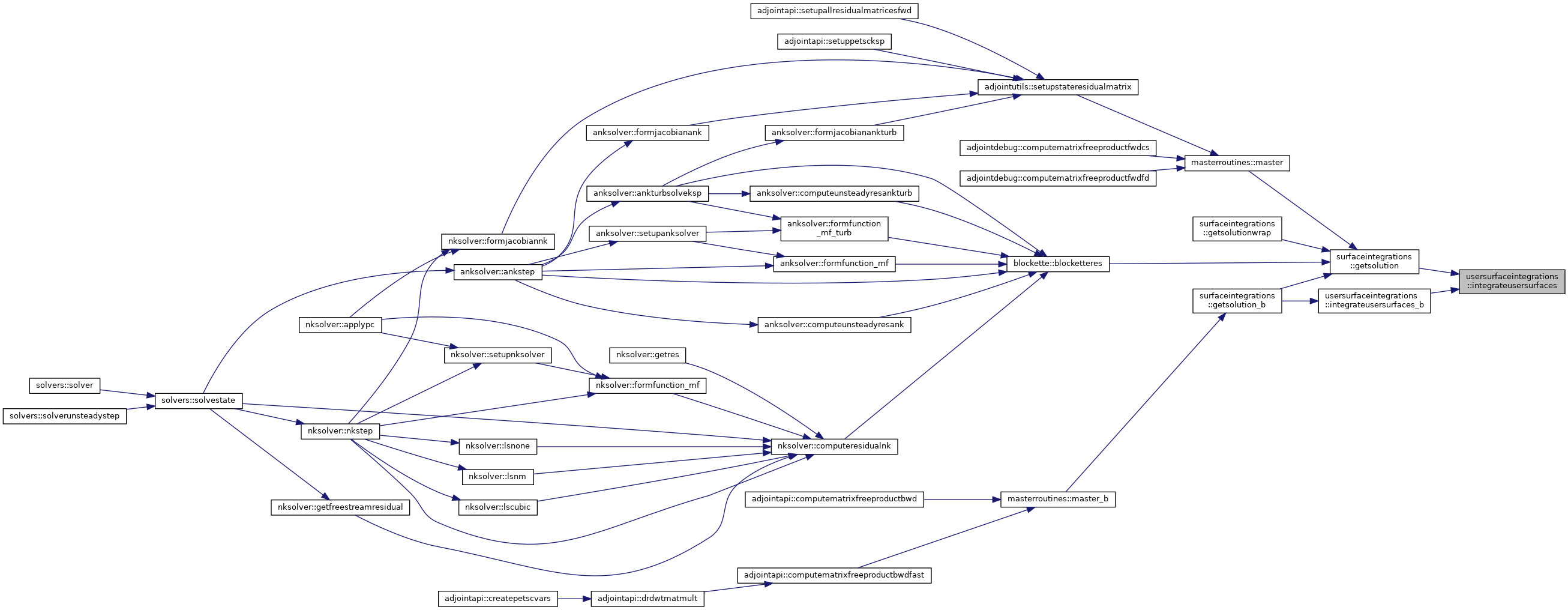

Here is the caller graph for this function:

integrateusersurfaces_b()

subroutine usersurfaceintegrations::integrateusersurfaces_b	(	real(kind=realtype), dimension(nlocalvalues), intent(inout)	localValues,
		real(kind=realtype), dimension(nlocalvalues), intent(inout)	localValuesd,
		integer(kind=inttype), dimension(:), intent(in)	famList,
		integer(kind=inttype), intent(in)	sps
	)

Definition at line 280 of file userSurfaceIntegrations.F90.

References communication::adflow_comm_world, commuserintegrationsurfacevars(), commuserintegrationsurfacevars_b(), flowutils::computeptot(), flowutils::computettot(), utils::echk(), sorting::faminlist(), block::flowdoms, block::flowdomsd, zipperintegrations_b::flowintegrationzipper_b(), integrateusersurfaces(), constants::irho, constants::ivx, constants::ivy, constants::ivz, constants::izippflowgamma, constants::izippflowp, constants::izippflowsface, constants::izippflowx, constants::izippflowy, constants::izippflowz, flowvarrefstate::lref, communication::myid, utils::mynorm2(), block::ndom, usersurfaceintegrationdata::nuserintsurfs, constants::nzippflowcomm, flowvarrefstate::pref, flowvarrefstate::rhoref, utils::terminate(), flowvarrefstate::timeref, flowvarrefstate::tref, usersurfaceintegrationdata::userintsurfs, and constants::zero.

Referenced by surfaceintegrations::getsolution_b().

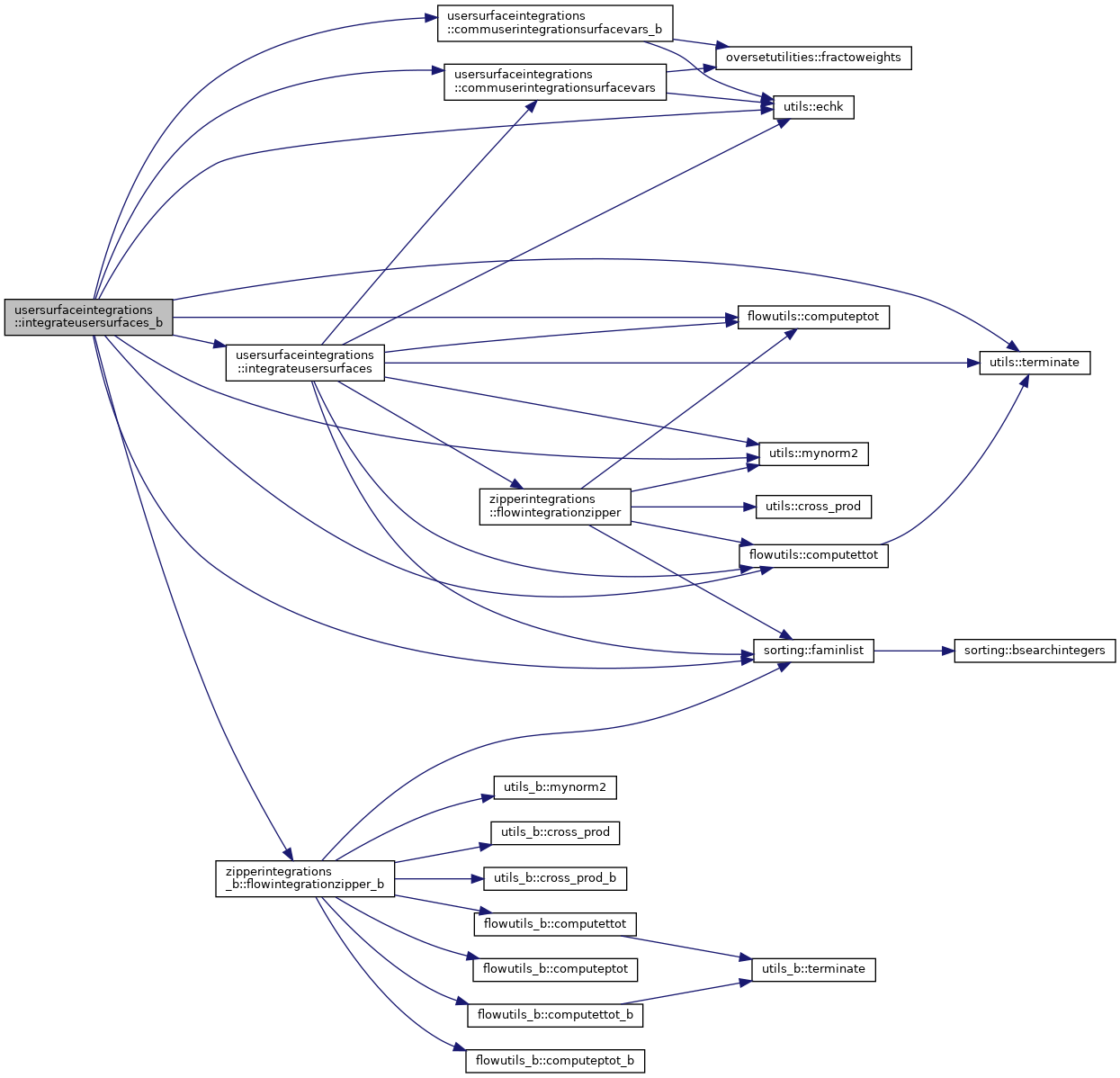

Here is the call graph for this function:

Here is the caller graph for this function:

integrateusersurfaces_d()

subroutine usersurfaceintegrations::integrateusersurfaces_d	(	real(kind=realtype), dimension(nlocalvalues), intent(inout)	localValues,
		real(kind=realtype), dimension(nlocalvalues), intent(inout)	localValuesd,
		integer(kind=inttype), dimension(:), intent(in)	famList,
		integer(kind=inttype), intent(in)	sps
	)

Definition at line 131 of file userSurfaceIntegrations.F90.

References communication::adflow_comm_world, commuserintegrationsurfacevars_d(), flowutils::computeptot(), flowutils::computettot(), utils::echk(), sorting::faminlist(), block::flowdoms, block::flowdomsd, zipperintegrations_d::flowintegrationzipper_d(), constants::irho, constants::ivx, constants::ivy, constants::ivz, constants::izippflowgamma, constants::izippflowp, constants::izippflowsface, constants::izippflowx, constants::izippflowy, constants::izippflowz, flowvarrefstate::lref, communication::myid, utils::mynorm2(), block::ndom, usersurfaceintegrationdata::nuserintsurfs, constants::nzippflowcomm, flowvarrefstate::pref, flowvarrefstate::rhoref, utils::terminate(), flowvarrefstate::timeref, flowvarrefstate::tref, usersurfaceintegrationdata::userintsurfs, and constants::zero.

Referenced by surfaceintegrations::getsolution_d().

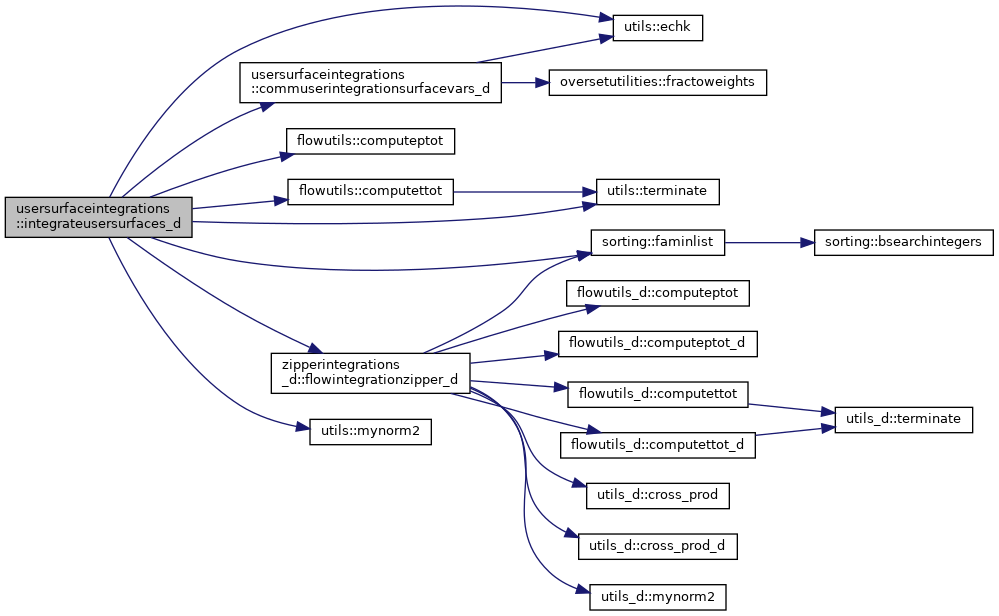

Here is the call graph for this function:

Here is the caller graph for this function:

interpolateintegrationsurfaces()

subroutine usersurfaceintegrations::interpolateintegrationsurfaces

Definition at line 1102 of file userSurfaceIntegrations.F90.

References communication::adflow_comm_world, adtbuild::buildserialhex(), buildvolumeadts(), adtbuild::destroyserialhex(), utils::echk(), blockpointers::ie, blockpointers::il, blockpointers::je, blockpointers::jl, blockpointers::ke, blockpointers::kl, communication::myid, usersurfaceintegrationdata::nuserintsurfs, performinterpolation(), utils::setpointers(), and usersurfaceintegrationdata::userintsurfs.

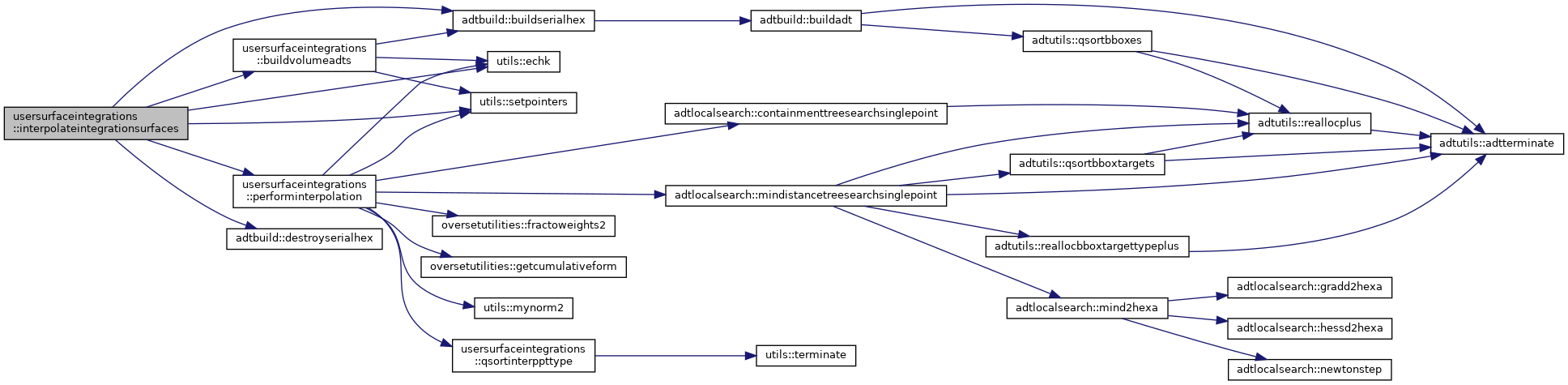

Here is the call graph for this function:

performinterpolation()

subroutine usersurfaceintegrations::performinterpolation	(	real(kind=realtype), dimension(:, :), intent(in)	pts,
		type(oversetblock), dimension(:), intent(in), target	oBlocks,
		logical, intent(in)	useDual,
		type(usersurfcommtype)	comm
	)

Definition at line 697 of file userSurfaceIntegrations.F90.

References communication::adflow_comm_world, adtlocalsearch::containmenttreesearchsinglepoint(), utils::echk(), oversetutilities::fractoweights2(), oversetutilities::getcumulativeform(), blockpointers::iblank, blockpointers::ie, blockpointers::il, blockpointers::je, blockpointers::jl, blockpointers::ke, blockpointers::kl, constants::large, adtlocalsearch::mindistancetreesearchsinglepoint(), communication::myid, utils::mynorm2(), communication::nproc, inputoverset::oversetprojtol, qsortinterppttype(), utils::setpointers(), adtutils::stack, blockpointers::vol, blockpointers::x, and constants::zero.

Referenced by interpolateintegrationsurfaces().

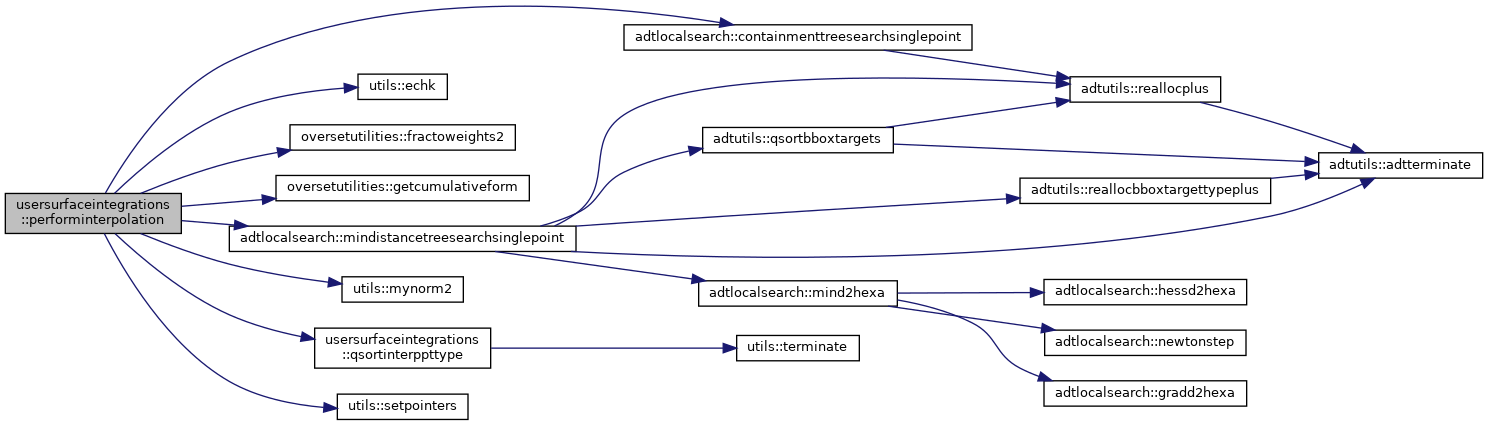

Here is the call graph for this function:

Here is the caller graph for this function:

qsortinterppttype()

subroutine usersurfaceintegrations::qsortinterppttype	(	type(interppttype), dimension(*), intent(inout)	arr,
		integer(kind=inttype), intent(in)	nn
	)

Definition at line 1421 of file userSurfaceIntegrations.F90.

References utils::terminate().

Referenced by performinterpolation().

Here is the call graph for this function:

Here is the caller graph for this function:
