gridchecking Module Reference

Functions/Subroutines
subroutine	checkfaces
subroutine	checkfacesblock (blockIsBad, faceID, multiple)
subroutine	check1to1subfaces
subroutine	periodictransformsubface (coor, nn, rotCenter, rotAngles, translation)
subroutine	checksubfacecoor (subfaceInfo, coor, nFace, nBad, badSubfaces, badDist, nSpectral)

Function/Subroutine Documentation

check1to1subfaces()

subroutine gridchecking::check1to1subfaces

Definition at line 394 of file gridChecking.F90.

References communication::adflow_comm_world, cgnsgrid::cgnsdoms, cgnsgrid::cgnsndom, blockpointers::cgnssubface, checksubfacecoor(), utils::delta(), blockpointers::dinbeg, blockpointers::dinend, blockpointers::djnbeg, blockpointers::djnend, blockpointers::dknbeg, blockpointers::dknend, blockpointers::inbeg, blockpointers::inend, blockpointers::jnbeg, blockpointers::jnend, blockpointers::knbeg, blockpointers::knend, blockpointers::l1, blockpointers::l2, blockpointers::l3, communication::myid, blockpointers::n1to1, blockpointers::nbkglobal, blockpointers::nbocos, blockpointers::neighblock, blockpointers::neighproc, communication::nproc, inputtimespectral::ntimeintervalsspectral, periodictransformsubface(), communication::recvrequests, communication::sendrequests, utils::setpointers(), partitionmod::sortbadentities(), commonformats::strings, utils::terminate(), and blockpointers::x.

Referenced by partitioning::partitionandreadgrid().

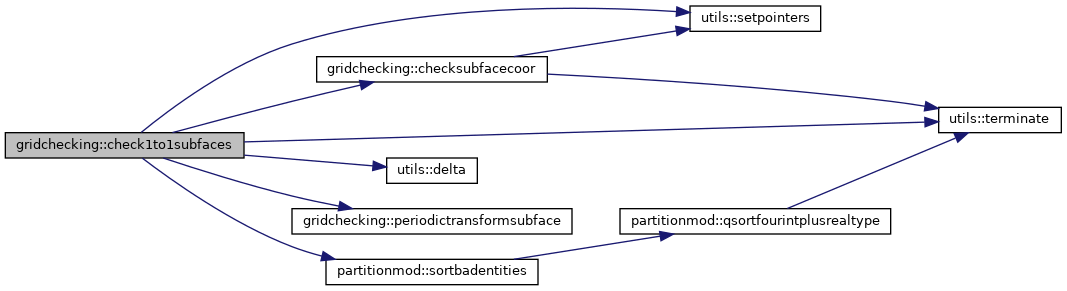

Here is the call graph for this function:

Here is the caller graph for this function:

checkfaces()

subroutine gridchecking::checkfaces

Definition at line 3 of file gridChecking.F90.

References communication::adflow_comm_world, cgnsgrid::cgnsdoms, cgnsgrid::cgnsndom, checkfacesblock(), constants::imax, constants::imin, constants::jmax, constants::jmin, constants::kmax, constants::kmin, communication::myid, blockpointers::nbkglobal, communication::nproc, inputtimespectral::ntimeintervalsspectral, utils::setpointers(), partitionmod::sortbadentities(), commonformats::strings, and utils::terminate().

Referenced by partitioning::partitionandreadgrid().

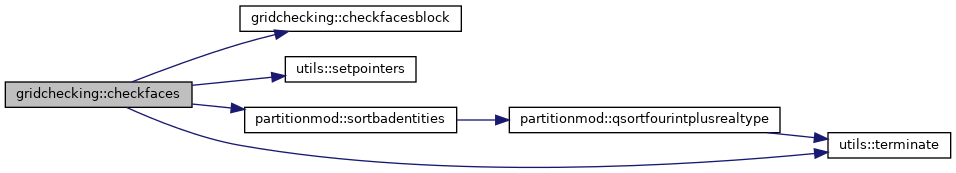

Here is the call graph for this function:

Here is the caller graph for this function:

checkfacesblock()

subroutine gridchecking::checkfacesblock	(	logical, intent(out)	blockIsBad,
		integer(kind=inttype), intent(out)	faceID,
		integer(kind=inttype), intent(out)	multiple
	)

Definition at line 220 of file gridChecking.F90.

References blockpointers::bcfaceid, blockpointers::il, constants::imax, constants::imin, blockpointers::inbeg, blockpointers::inend, blockpointers::jl, constants::jmax, constants::jmin, blockpointers::jnbeg, blockpointers::jnend, blockpointers::kl, constants::kmax, constants::kmin, blockpointers::knbeg, blockpointers::knend, and blockpointers::nsubface.

Referenced by checkfaces().

Here is the caller graph for this function:

checksubfacecoor()

subroutine gridchecking::checksubfacecoor	(	integer(kind=inttype), dimension(10, *), intent(in)	subfaceInfo,
		real(kind=realtype), dimension(3, *), intent(in)	coor,
		integer(kind=inttype), intent(in)	nFace,
		integer(kind=inttype), intent(inout)	nBad,
		integer(kind=inttype), dimension(4, *), intent(inout)	badSubfaces,
		real(kind=realtype), dimension(*), intent(inout)	badDist,
		integer(kind=inttype), intent(in)	nSpectral
	)

Definition at line 1072 of file gridChecking.F90.

References cgnsgrid::cgnsdoms, constants::eps, constants::four, blockpointers::il, blockpointers::inbeg, blockpointers::inend, blockpointers::jl, blockpointers::jnbeg, blockpointers::jnend, blockpointers::kl, blockpointers::knbeg, blockpointers::knend, constants::large, blockpointers::n1to1, blockpointers::nbocos, constants::one, utils::setpointers(), commonformats::strings, utils::terminate(), blockpointers::x, and constants::zero.

Referenced by check1to1subfaces().

Here is the call graph for this function:

Here is the caller graph for this function:

periodictransformsubface()

subroutine gridchecking::periodictransformsubface	(	real(kind=realtype), dimension(3, nn), intent(inout)	coor,
		integer(kind=inttype), intent(in)	nn,
		real(kind=realtype), dimension(3), intent(in)	rotCenter,
		real(kind=realtype), dimension(3), intent(in)	rotAngles,
		real(kind=realtype), dimension(3), intent(in)	translation
	)

Definition at line 988 of file gridChecking.F90.

Referenced by check1to1subfaces().

Here is the caller graph for this function:
